Streamfeeder AutoStream™

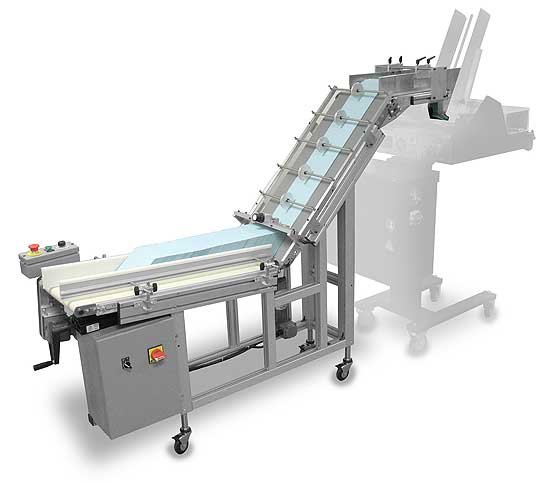

Model HV High Volume Auto Loader

Increase your productivity with the new Streamfeeder High Volume Auto Loader, the latest addition to our Streamfeeder AutoStream product line. With quick setups, easy of use and a large product loading area, it efficiently manages high-speed batch counting/accumulating and other large run applications including collation lines.

applicationS: (click to view video)



Streamfeeder Greeting Cards

Streamfeeder Envelopes
Streamfeeder Brochures
Streamfeeder Padded Envelopes
technical data
Maximum Product Size: 12 W x 12 L in (305 x 305 mm)

Minimum Product Size:

3 W x 5 L in (76 x 127 mm)
Min/Max Product Thickness: 003-.3125 in (.076-8 mm)
Feed Belt Speed: 0-120 fpm (0-36,576 mm/min)
Load Belt Speed : 0-10 fpm (0-3,048 mm/min)
Load Belt Capacity : 300 lbs. (136 kg)
Electrical Requirements: 115vac, 60Hz, 7A
