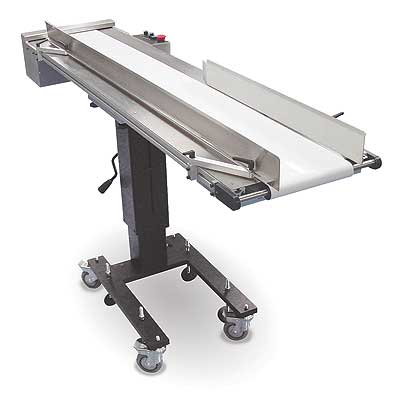

Streamfeeder AutoStream™
Model P1

Designed to be a flexible "bulk product" loading solutions that easily integrates to a variety of host equipment including addressing bases, swing arm inserter hopper stations, rotary drum feeders, and much more.

The Streamfeeder P1 features a modular design, 6-foot loading capacity, easy height adjustment, system"jog", and stack height monitoring sensor.

applicationS: (click to view video)



Streamfeeder Collation System

Streamfeeder Single Feeder System
technical data
Maximum Product Size: 12 W x 12 L in (304 x 304 mm)

Minimum Product Size:

3.625 W x 5 L in (92 x 127 mm)
Min/Max Product Thickness: .003-.75 in (.076-19 mm)
Conveyor Belt Speed: Variable up to 300 ipm (7620 mmpm)
Electrical Requirements: 115vac, 60Hz, 3A
Table Height (adjustable range): 45-58 in (1143-1473 mm)
