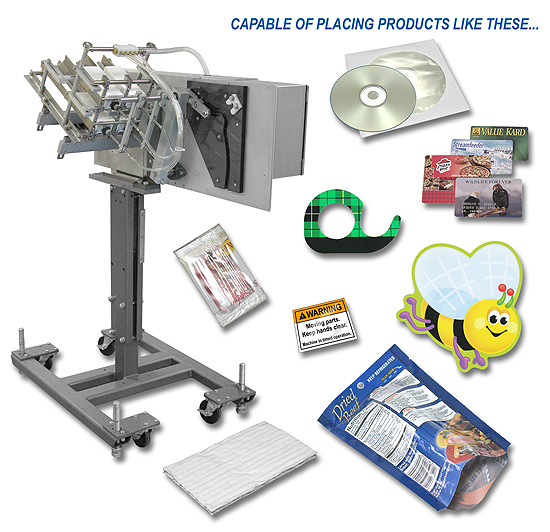

Streamfeeder Reciprocating Placer

Designed to accurately place products onto intermittent or continuous motion conveyors. Ideal in situations where you must not mar the product. Features innovative design and heavy-duty construction. The option of vertical or horizontal placement orientation makes this machine extremely versatile and is easily integrated with customers’ existing equipment.

applicationS: (click to view video)



Streamfeeder Flat or folded literature Streamfeeder Die Cut Products
Streamfeeder CD/DVD Discs Streamfeeder Coupons
Streamfeeder Plastic Cards Streamfeeder Labels
Streamfeeder Overwrapped Products (pouches) Streamfeeder Embossed Products
technical data
Maximum Product Size: 10 W x 10 L in (254 x 254 mm)*
Minimum Product Size: 1.5 W x 1.5 L in (38 x 38 mm)*
Speed: 65 cycles per minute
Electrical Requirements: 115vac, 60Hz, 2A
Air Requirements: 18 CFM @ 80 PSI

Overall Dimensions:
Dimensions do not include stand

18 W x 30 D x 12 H in (457 x 762 x 305 mm)
*Optional product size available
